Specialised Vessel Services

SVS Cavendish

Fast Support Intervention / Multi Purpose Vessel / Guard Ship

Main Particulars

Length

53.25 m

Moulded Beam

10.20 m

Draft

3.20 m

Gross Tonnage

439 T

Net Tonnage

132 T

Deck Area

165 m²

Max. Deck Load

2.5 T/m²

Davit

Noreq NPD3500

FRC

Noreq 6.5m Inboard Jet

Performance

Cruise Speed

11.5 Knots

Maximum Speed

22 Knots

Range / Endurance

6000 NM / 35 Days

Max. Bollard Pull

22 T

Accommodation

Crew Berths

8

Charterers Berths

14

Crew Transfer Capacity

80 business class seats

Air Conditioning

Yes

Deck Lay-Out

Anchor Equipment

1x 184 kg HHP Pool TW

Marine Deck Crane

HLM 25-3S SWL 2T @ 10.56 m

Towing Hook

SWL 45 ton

Aft Deck

Wood covering

Capacities

Fuel Capacity

169.85 m³

Potable Water Capacity

28.60 m³

Water Maker

Sea recovery Aqua whisper producing 2.5 m³ per day

Fresh Water / Cargo

173.10 m³

Deck Cargo

250 T

Fire Fighting Equipment

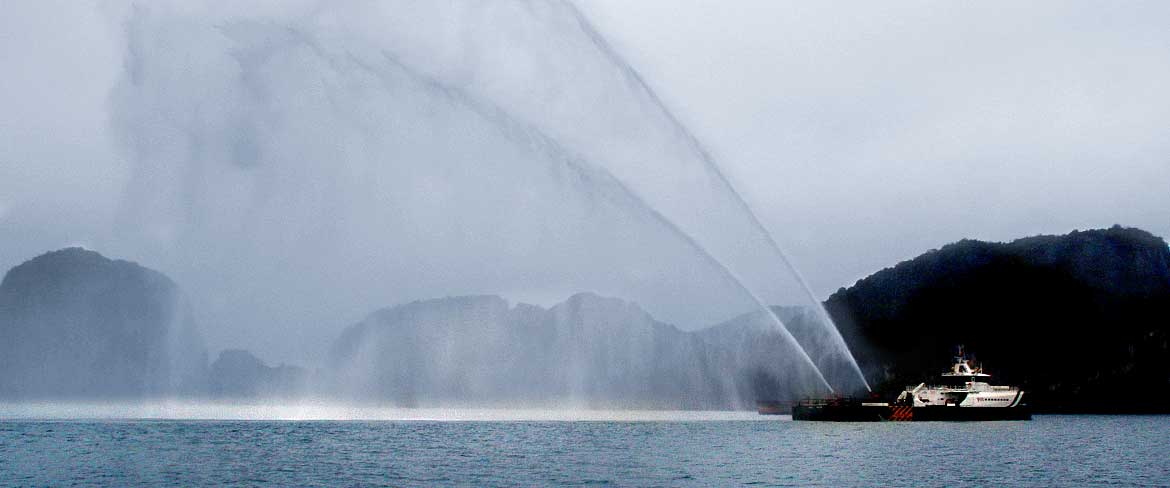

FiFi Monitors

2x 1200 m3/hr Alvco APF 7-AC

Spray Booms

2x dispersant booms

Fire Fighting Internal

Novec 1230

Classification

Class

Bureau Veritas

Vessel Type

Fast Utility Vessel

Built

2014

Ship Builder

DAMEN Netherlands

Flag

St Vincent & the Grenadines

Port of Registry

Kingstown

Official Number

11460

IMO Number

9676539

Call Sign

J8B4987

Navigation Equipment

Radar

2x JRC, JMA 5212-4 HSB

Searchlight

2x 1000W MP Pesch

Auto Pilot

Alphaseapilot MFC

Echo sounder

Alphatron, Alphadepth DT800

Magnetic compass

Richie – Navigator HB-71

Satellite navigation(GPS)

Veripos / JLR 7800

Gyro Compass

Alphaminicourse

Dynamic Positioning (DP)

Alphatron DYNAPOS AM

Life Saving Equipment

Lifebuoys

6

Lifejackets

88

Life Rafts

Inflatable life rafts for min. 88 persons

EPIRB

McMurdo E5

SART

McMurdo - 54 Rescue

Fast Resque Boat

Preparation for Davit with FRC

Communication Equipment

Internet antenna

SAILOR

SAT TV Antenna

Intellian

SSB radio

Sailor 6000

VHF radio

2 x Sailor RT6222

Navtex & AIS

JRC, NCR-333 & JRC, JHS-182

Email/Sat phone equipment

VSAT/IOP

Tracking device

Sat C

Surveillance Equipment

Thermal Imaging

Night Vision

Machinery

Main Engines

4x Caterpillar 3512C TA
(4472 kW)

Generators

3x Caterpillar C4.4, 99 kW each

Propulsion

4x Fixed pitch propellers

Bowthrusters

2x 85 bkW, electrically driven

Fire Safety Equipment

Safety Equipment as per SOLAS, Flag and Class Society requirement.

SVS Cavendish Gallery

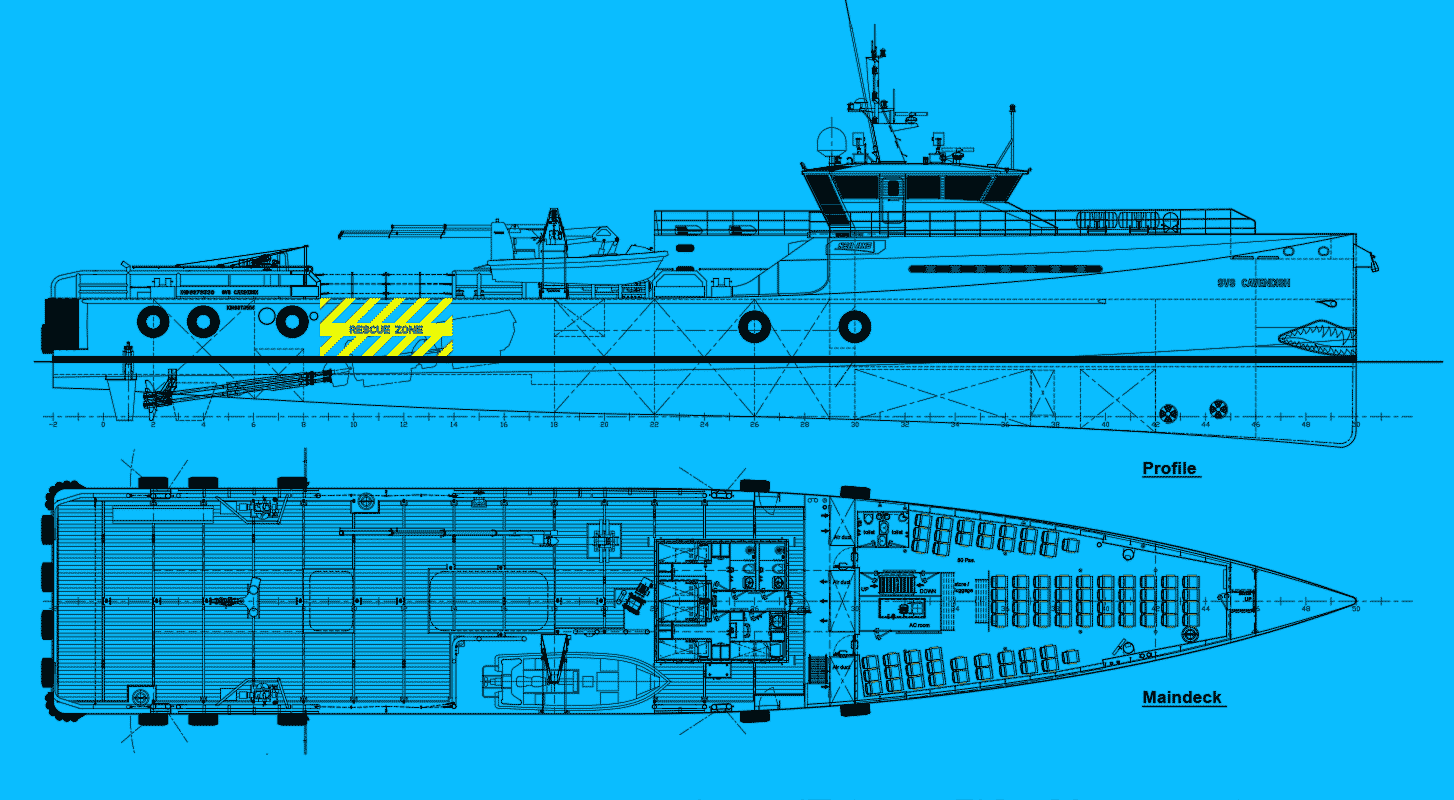

SVS Cavendish GA Plans
